Shower Channel
TECE Drainline glass
- Straight lengths 700, 800, 900, 1000, 1200, 1500 mm (nominal lengths).
- Visible width of 52 MM.
- Withstands a 300 KG. (load class K3).

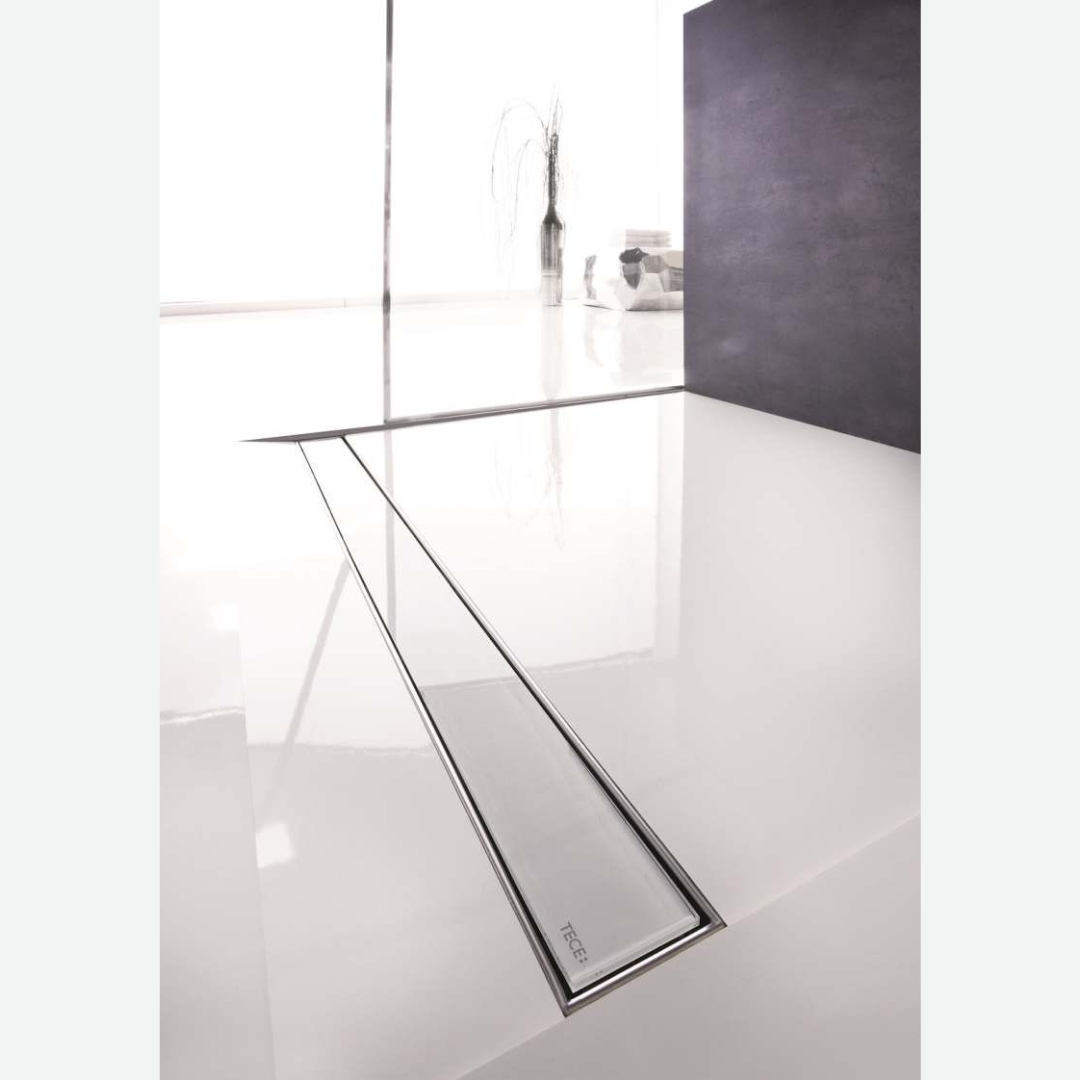

Like the plate tile able channel, the glass cover forms an enclosed surface that integrates seamlessly into the bathroom floor. The shower water flows off easily through a narrow drainage opening around the channel.
TECE provides the glass cover in standard colours green, black and white. The round-edged safety glass is permanently fixed to the underlying robust stainless steel support by means of a special adhesive.

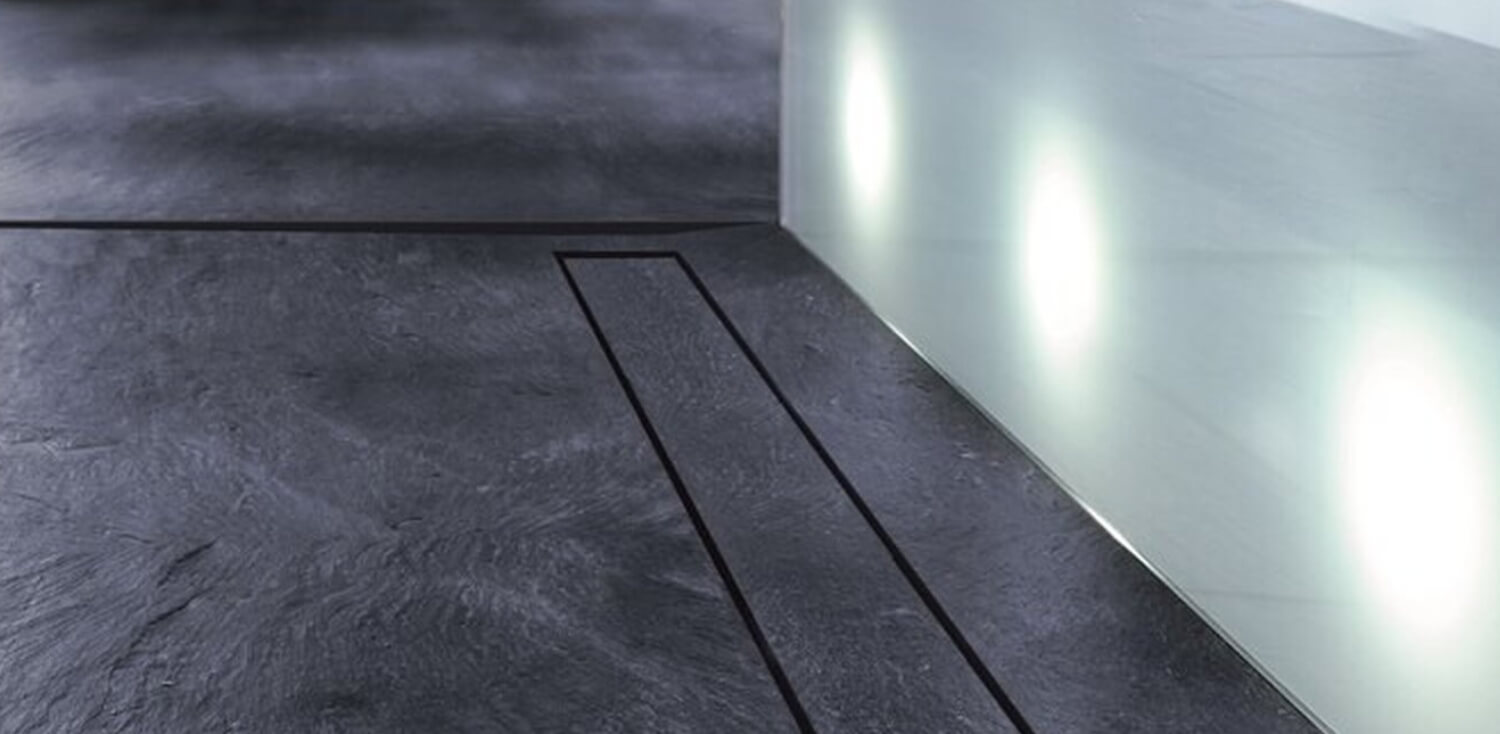

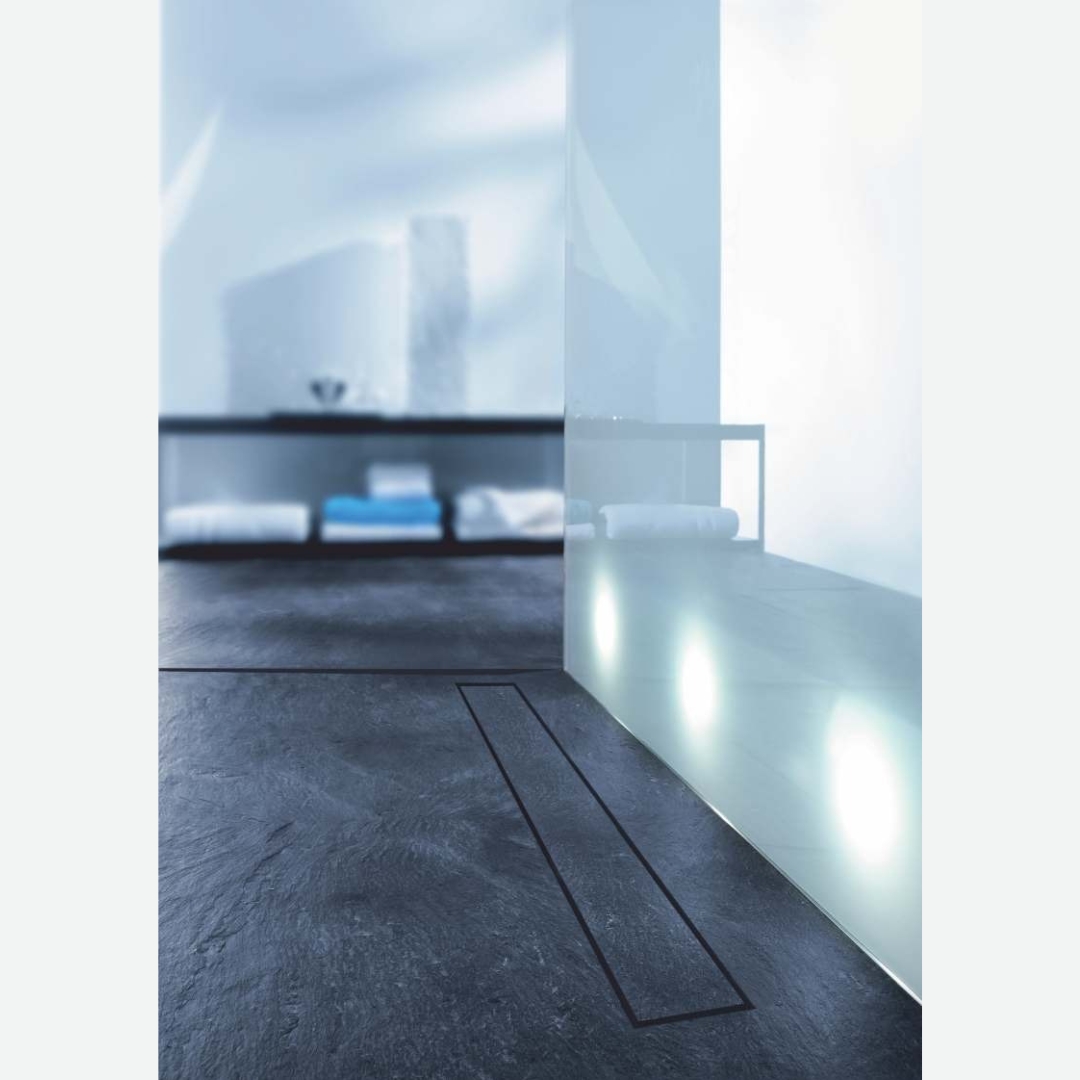

Natural stones floors have their own unmistakable charm. However, it is often somewhat unpractical to install a shower channel in this type of floor. TECE has therefore developed a special channel for natural stones floors that makes installation and sealing the easier. A change has been made to the appearance too : while before narrow stainless steel edges bordered the drain opening, only a slit is now visible in the natural stones.
| Natural Stones | Visible Dimension Following Assembly | Code | RS. |
| 700 MM | 735 MM | 650700 | Rs. 41,900.00 |
| 800 MM | 835 MM | 650800 | Rs. 43,900.00 |
| 900 MM | 935 MM | 650900 | Rs. 45,900.00 |
| 1000 MM | 1035 MM | 651000 | Rs. 48,900.00 |
| 1200 MM | 1235 MM | 651200 | Rs. 53,900.00 |
| 1500 MM | 1535 MM | 651500 | Rs. 60,900.00 |

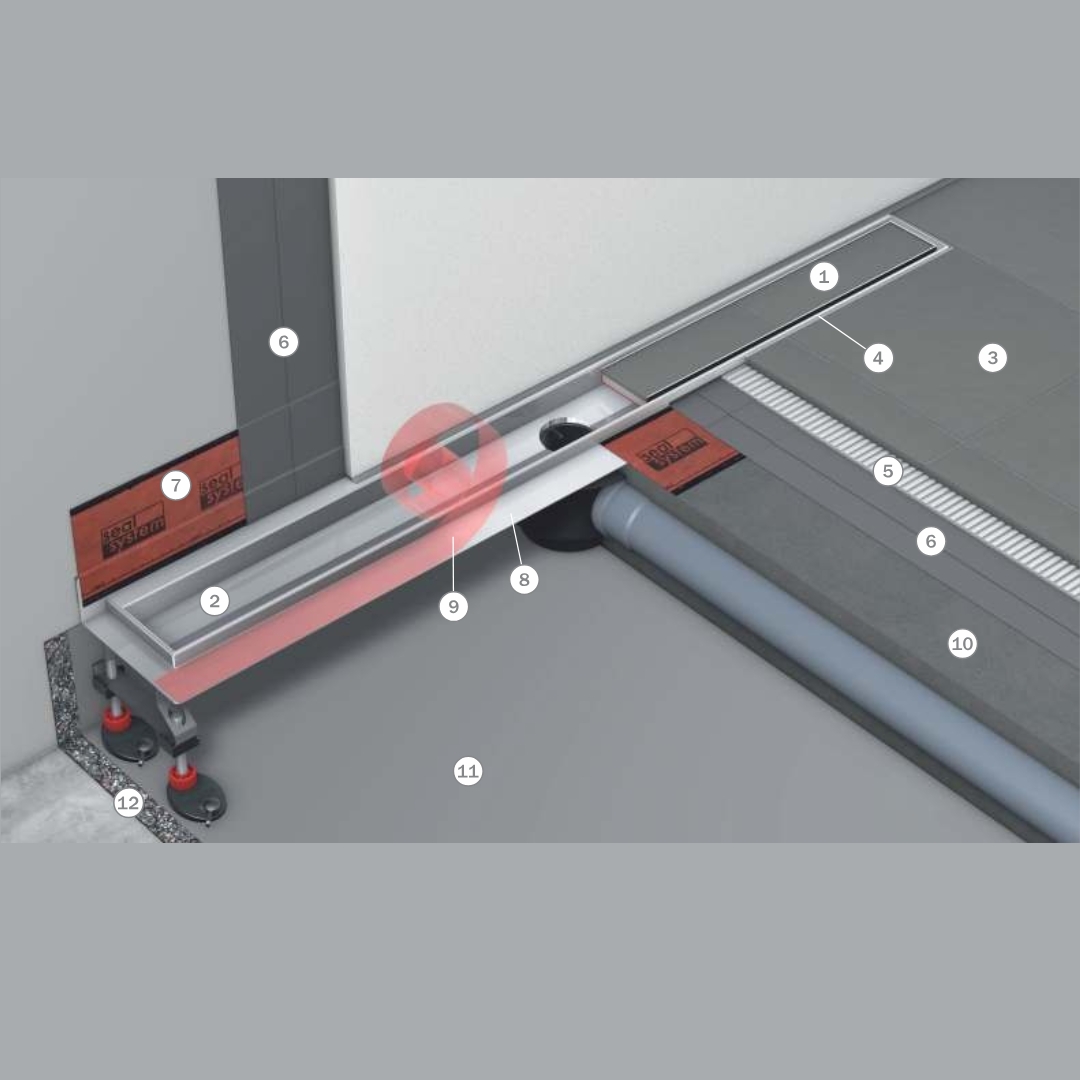

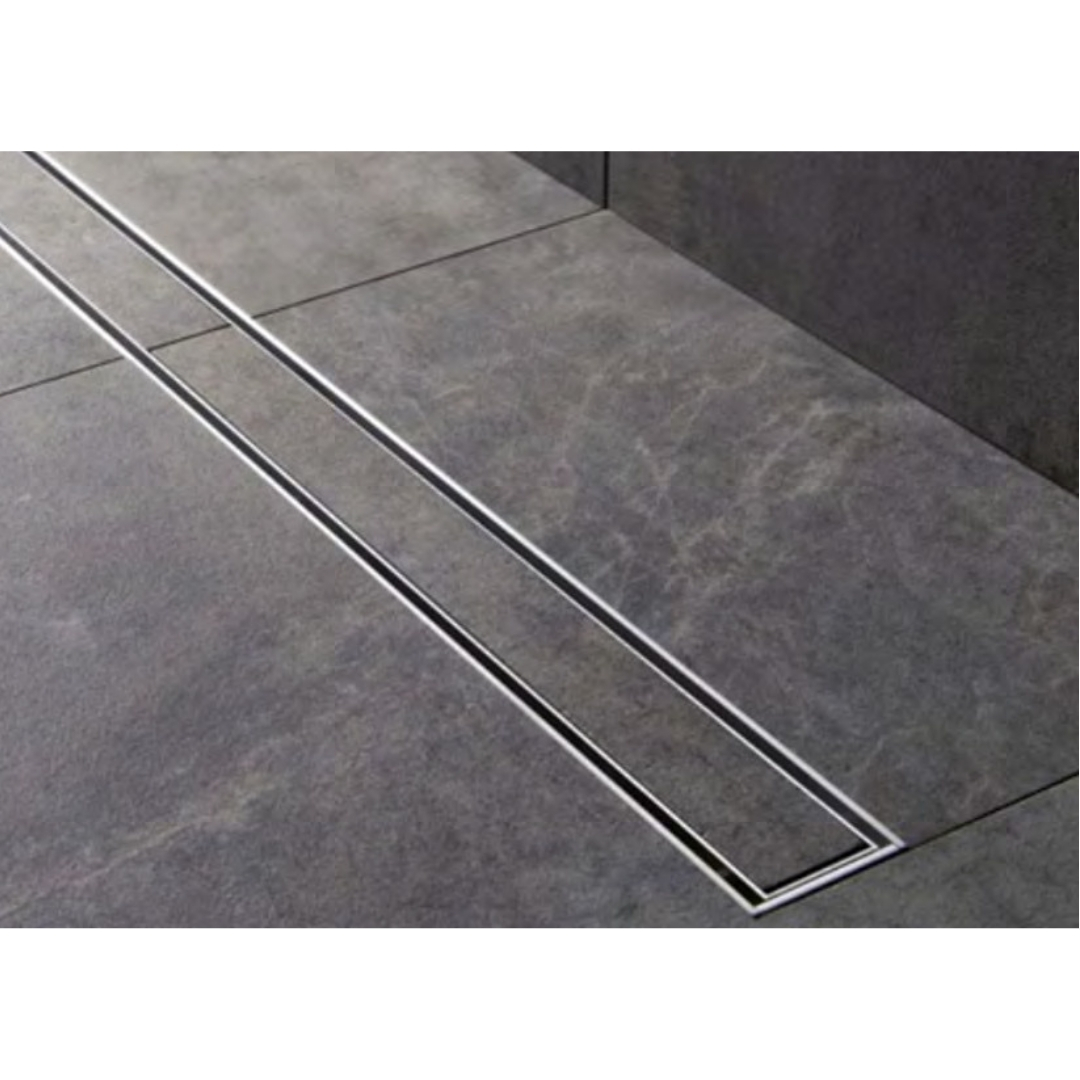

- Plate Tileable Channel.
- Channel Body
- Tile Cover
- Elastic Grouting
- Tile Adhesive
- Composite Seal
- Seal System Sealing Tape
- Channel Flange
- Removable Protective Film.
- Scareed
- PE Foil
- Drainbase Sound Insulation Mat.
| Width (MM) | 75 | 85 | 115 |
| Outlet (MM) | 50 | 65 | 95 |
The Product comes in different lengths of 300 mm, 450 mm, 600 mm, 750 mm, 900 mm, 1000 mm, 1200 mm each. Customized sizes and color variants also available. Inclusive of Anti-Cockroach and Fuel Trap.

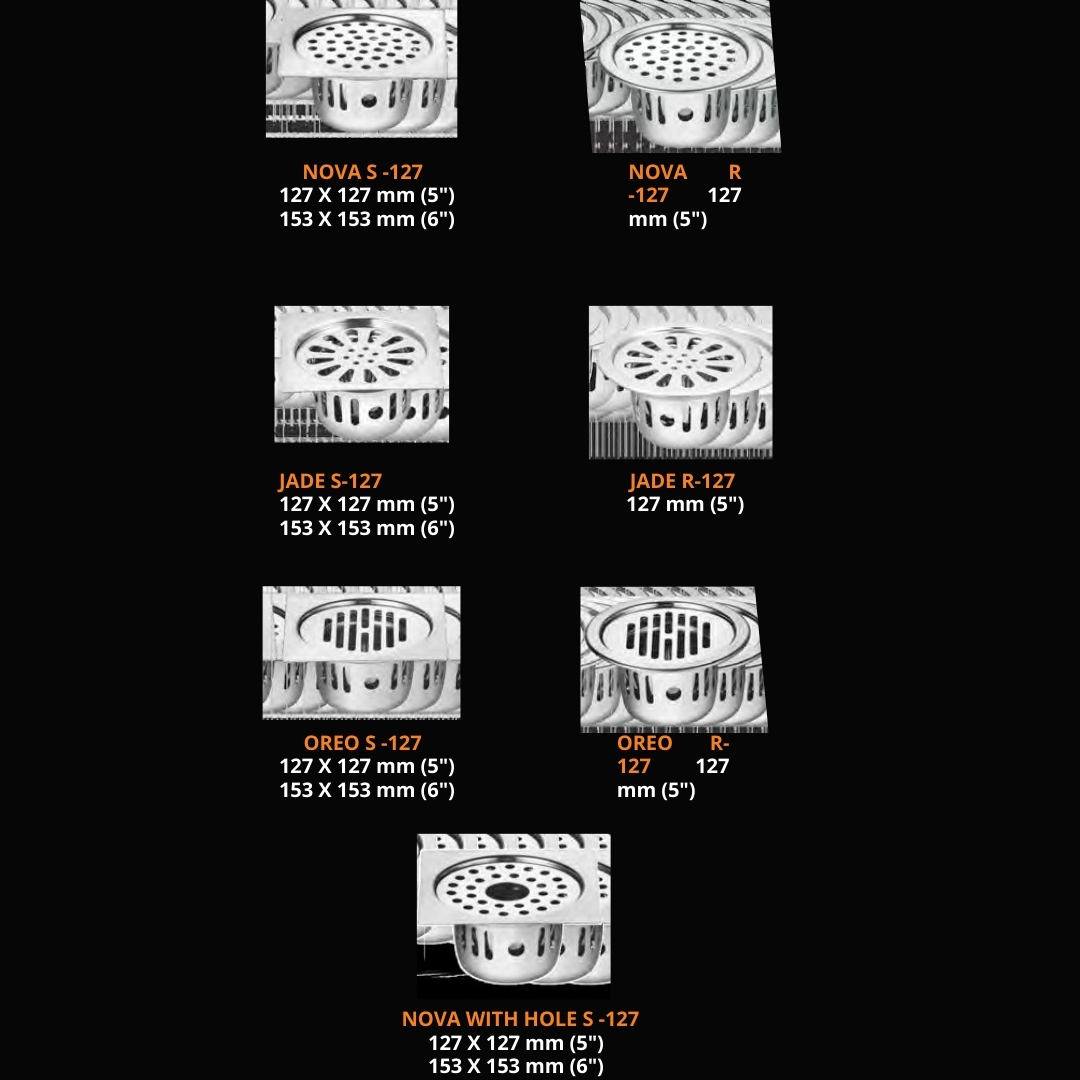

| 6x6 Inch | 5X5 Inch | 4X4 Inch |
| 150X150 MM | 125X125 MM | 100X100 MM |
| Outlet : 95 MM | Outlet : 95 MM | Outlet : 50 MM |
| Depth : Tile / Marble Or Stone Depth | Depth : Tile / Marble Or Stone Depth | Depth : Tile / Marble Or Stone Depth |
